In precision mechanical systems, especially in molds and automated machinery, Ball Guide Bushing play a crucial intermediate role, enabling guide shafts to move linearly with minimal friction and maximum accuracy.
What are Ball Guide Bushings?
Ball Guide bushings are a type of linear bearing. Unlike conventional brass or plastic bearings (which use sliding friction), this type contains rows of ultra-hard steel balls inside. As the shaft moves, the balls roll, converting sliding friction into rolling friction, resulting in superior smoothness.
Some of the most popular ball bearing guide products currently available include: MBSH ball guide bushing, MBC ball guide bushing, RMSH ball guide bushing, A-TRP die guide (d20 x L160), TRP die guide (d20 x L150), SRP die guide (D20 x L150), MYA MYAP ball guide bushing, MYAK MYKP ball guide bushing,…
Structure and Operating Principle
A standard ball ball guide bushing typically includes:
Outer housing: Made from hardened alloy steel, with a polished surface.
Steel ball system: Balls of highly uniform size.

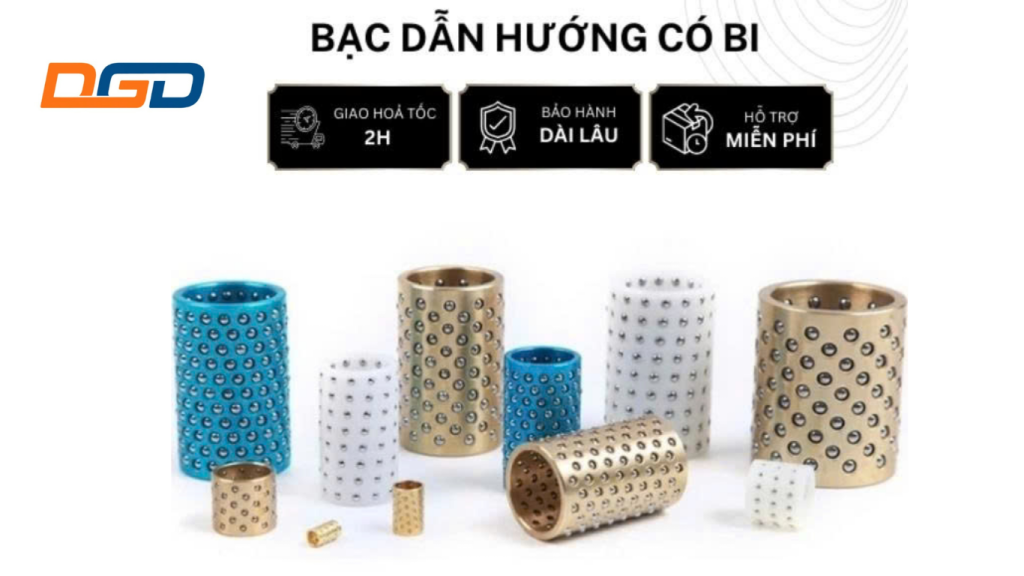

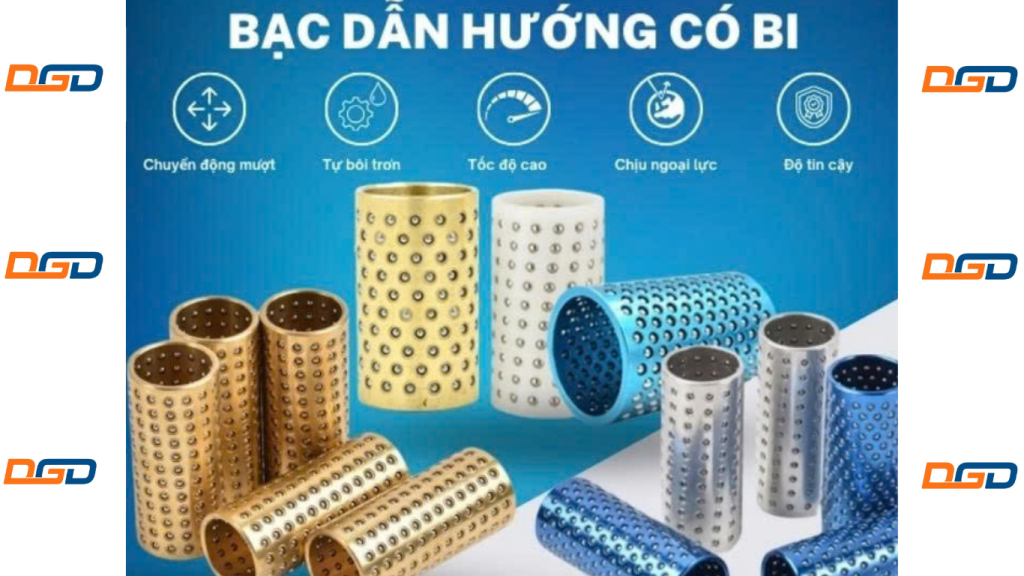

Retainer: Keeps the balls in place, preventing them from shifting or falling out during movement.
The operating principle of ball ball guide bushings is based on the rolling of the balls between contact surfaces to reduce friction and increase efficiency. When a component moves within the guide system, the balls roll instead of sliding on the surface, significantly reducing drag compared to conventional sliding mechanisms, while extending lifespan and improving performance. The combination of ball rolling and a smooth contact surface allows for smooth, stable, and highly durable movement, suitable for applications requiring high precision and long-term durability.
Dust Seal: The two ends of the bearing usually have rubber seals to prevent dust and dirt from entering and to retain the lubricating grease inside.
Outstanding Advantages in Manufacturing Applications
Why do operating engineers prefer ball bearing guide bushings for modern production lines?
Extremely High Precision
Thanks to the extremely small clearance between the ball and the shaft, ball bearing guide bushings eliminate vibration, ensuring that machine parts always follow the correct trajectory, thereby improving the quality of the output product.
Low Friction Coefficient
Low rolling friction allows machinery to operate more smoothly, reducing the load on the motor and transmission system. This is especially important in applications requiring high speed and continuous operation.
Smooth, Quiet Operation
The cyclical movement of the balls eliminates squeaking and mechanical vibration, creating a professional working environment and protecting the machine structure in the long term.
Long-lasting durability
Made from high-strength steel, the ball bearing guide bushings offer excellent wear resistance, saving businesses the cost of periodic component replacements.
Common Applications in Factories
Ball guide bushings are an indispensable component in:
Mold guiding systems: Used in stamping molds and plastic injection molds to ensure the two halves of the mold open and close perfectly.
Packaging and filling machines: Help filling nozzles or sealing bars move up and down smoothly.
Measuring equipment: Quality control tables requiring high sensitivity and accuracy.
Automatic labeling machines: Ensure consistent label placement on tens of thousands of products.
Tips for Maintaining Ball Guide Bushings
To keep the system running like new, you need to note:
Regular lubrication: Use specialized lubricating grease. This grease not only reduces friction but also prevents rust inside the bushing.
Cleaning the guide shaft: Always keep the guide shaft clean, free of metal shavings or wood dust to avoid jamming the balls inside the bushing.
Check for play: After prolonged use, check for play and replace the guide bushings promptly to avoid damaging the guide shaft.
Conclusion
With optimized motion and superior durability, ball bearing guide bushings are a smart choice for manufacturers seeking operational perfection. Understanding and correctly applying the right type of guide bushing will help businesses improve productivity and minimize downtime risks.
Need advice on the appropriate guide bushing size for your production machine? Contact our technical team today for support and the best price quote!
