Product information

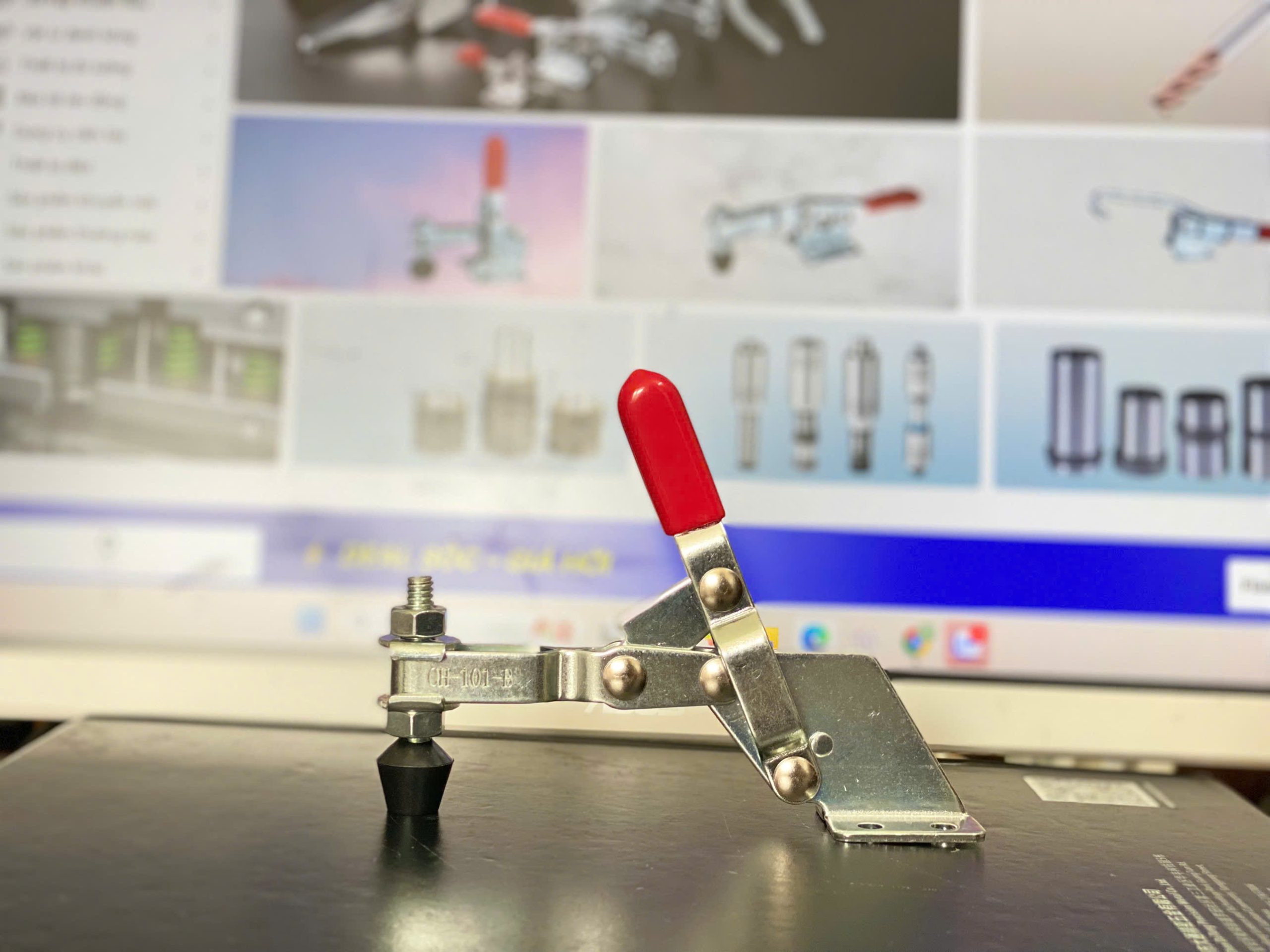

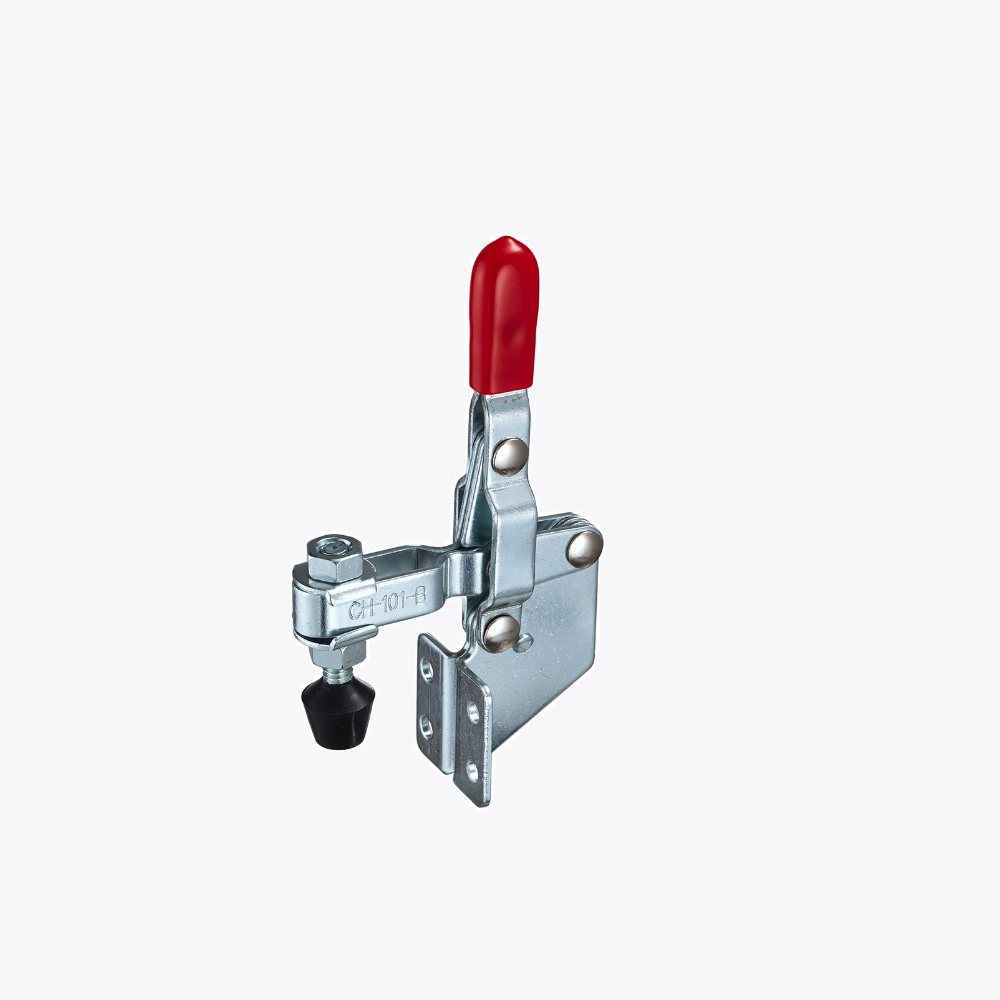

CH-101-B Toggle Clamp with Vertical level – Side mounted base is a clamp product for fixing workpieces through a connecting rod mechanism, and can be used in various operation processes such as inspection, assembly, mechanical processing and welding.
CH toggle clamp specifications:
– Model: CH-101-B
– Product Information:

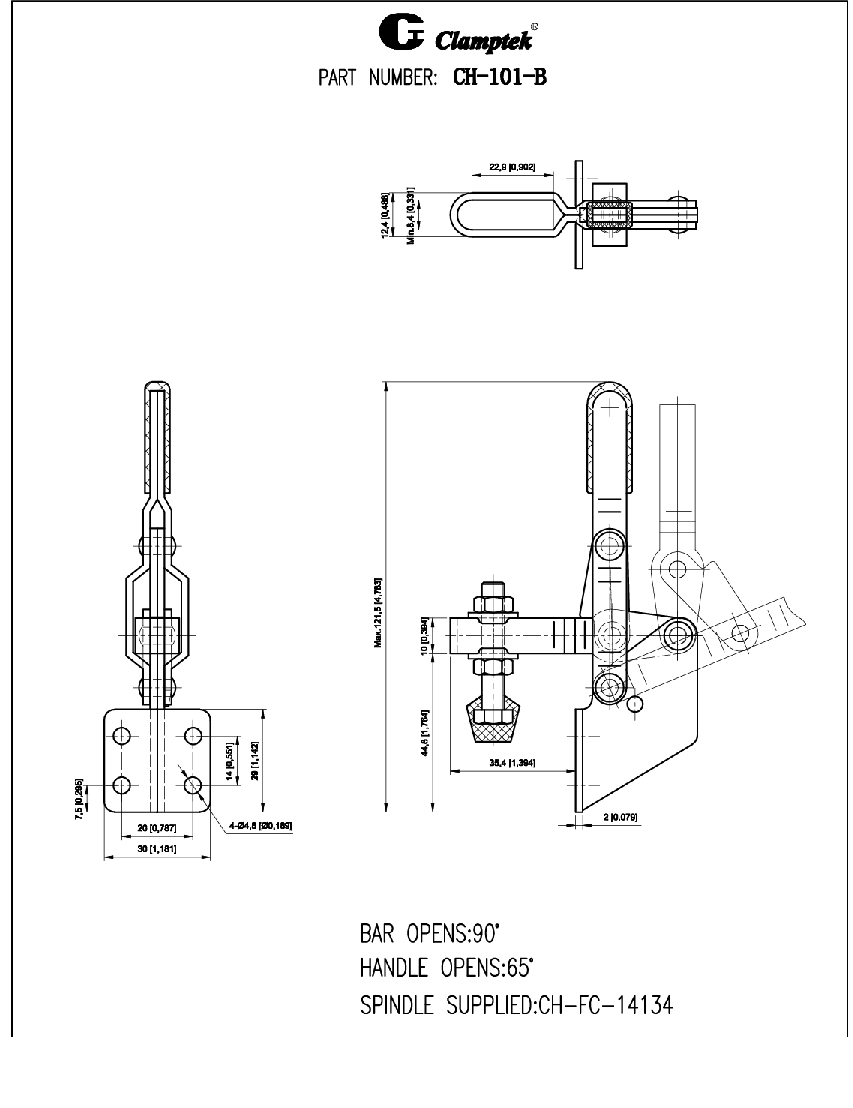

PDF drawings download here
CAD dwg drawings
File step 3D
Applications of CH toggle clamps in industrial manufacturing
– Used in assembly lines for trucks, motorcycle and bicycle workshops, and electronic component manufacturing.
– Used in workshops for clamping and assembling molds.
– Used in workshops for manufacturing wood clamps and changing the clamping direction of products.
