Product information

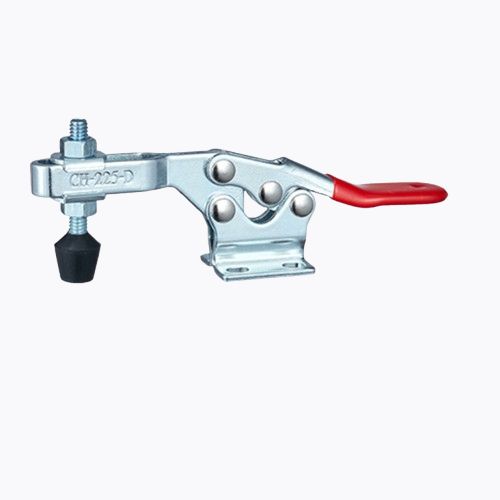

CH225D toggle clamp, from the Taiwanese brand Clamptek, is a quick-release clamp with horizontal jaws parallel to the clamping direction, used in jig and fixture systems and in manufacturing workshops.
CH toggle clamp specifications:
– Model: CH225-D
– Product Information:

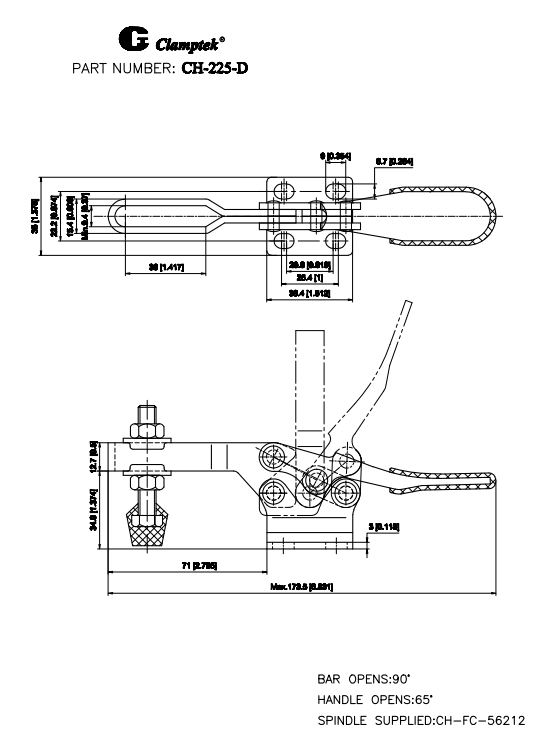

+PDF drawing download here
+ CAD dwg
+ File step 3D
Applications of CH locating clamps in industrial manufacturing:
– Used in assembly on trucks, motorcycle and bicycle workshops, and in the production of electronic components.
– Used in workshops for clamping and assembling molds.
– Used in workshops for manufacturing wood clamps and changing the clamping direction of products.
– Used in CNC machining workshops for metal cutting.
