Product information

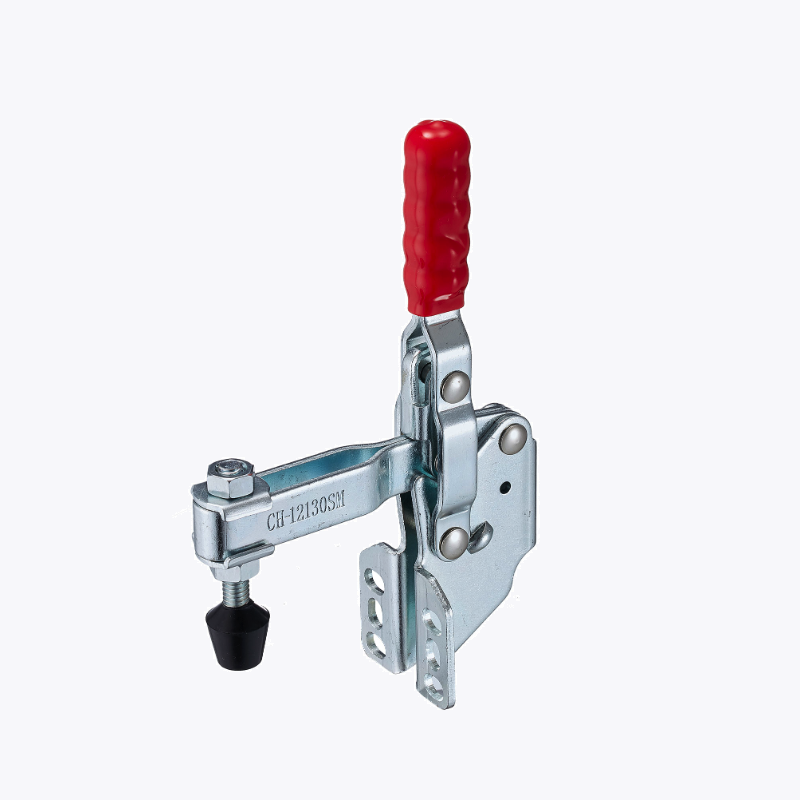

The CH12130SM toggle clamp, originating from Taiwan, is a quick-release clamp with vertically positioned jaws and a base surface perpendicular to the horizontal plane. It is used in jig and fixture systems and in manufacturing workshops..
CH toggle clamp specifications:
– Model: CH-12130-SM
– Product Information:

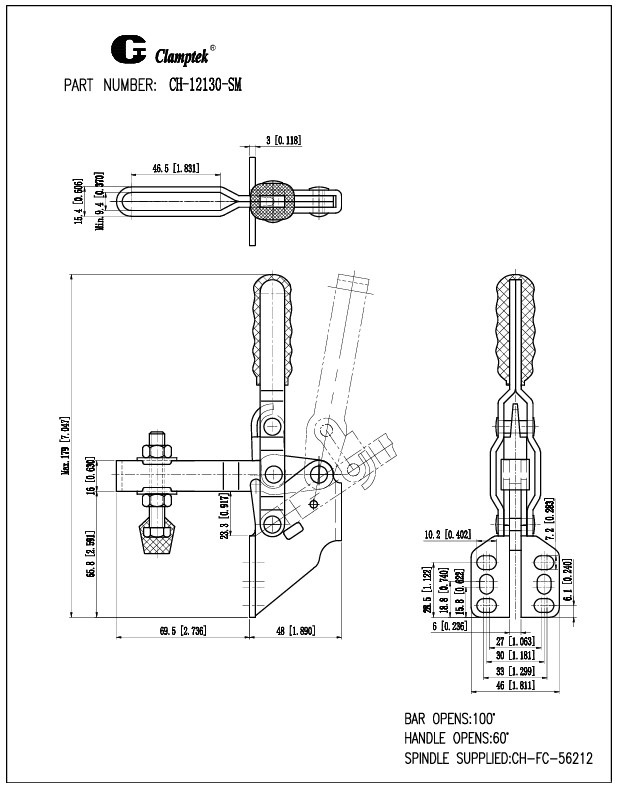

+ PDF drawing download here
+ CAD dwg
+ File step 3D
Applications of CH toggle clamps in industrial manufacturing:
– Used in assembly lines for trucks, motorcycle and bicycle workshops, and electronic component manufacturing.
– Used in workshops for clamping and assembling molds.
– Used in workshops for manufacturing wood clamps and changing the clamping direction of products.
– Used in CNC machining workshops for metal cutting.
– Used in workshops for clamping and assembling molds.
– Used in workshops for manufacturing wood clamps and changing the clamping direction of products.
– Used in CNC machining workshops for metal cutting.
